Section
4 Panel scantling requirements
4.1 Application
4.2 General
4.2.1 In this
Section the scantling requirements for the top and bottom plates and
core of steel sandwich panels are given.
4.2.2 The thickness
of the top and bottom plates of the steel sandwich panels may, in
addition, need to be increased to meet the hull girder requirements.
4.3 Taper requirements
4.3.2 Changes
in steel sandwich thickness are to be made using a gradual taper.
4.3.3 Where the
construction changes from steel sandwich panel to a single steel plate
construction a taper of not less than 4:1 is to be adopted and additional
stiffening may be required.

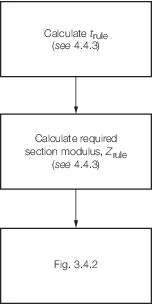

4.4 Thickness of sandwich panel
4.4.5 In the calculation of trule and Zrule
the material factor is always to be taken as k = 1 and the spacing is always to
be taken as s = 700 mm.

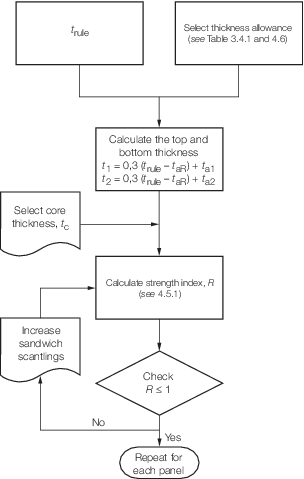

4.5 Strength index
4.5.1 The steel
sandwich panel is to be dimensioned in accordance with the strength
index, R, given below. This will ensure that the steel
sandwich panel is equivalent to a conventional steel construction:
where
AR
|
= |
|
Peq,R
|
= |
0,0017 in N/mm2
|
l
|
= |
length
of panel, in metres |
Zrule
|
= |
equivalent section modulus, in cm3, see
Ch 3, 4.4 Thickness of sandwich panel 4.4.4
|
tc
|
= |
selected core thickness, in mm |
a, b, d
|
= |
see
Ch 1, 7.2 Symbols 7.2.1
|
t1, t2
|
= |
thicknesses of the top and bottom plating,
in mm, see
Figure 3.4.2 Determination of top and bottom plate thickness and core
thickness
|
k
|
= |
see
Pt 3, Ch 2, 1.2 Steel 1.2.3 of the Rules and Regulations for the Classification of Ships, July 2022. |
4.5.2 The strength
index for steel sandwich panel is to be such that:
-
R ≤ 1
4.6 Thickness allowance
4.6.1 The local
thickness allowances for individual structural members are given in Table 3.4.1 Thickness allowance. Structural elements
not listed in the table, and ships having non-typical structural configurations
will be subjected to special consideration.
4.6.2 The thickness
allowance is to be applied to the plate thickness in direct contact
with the application in Table 3.4.1 Thickness allowance.
For example the crown of a deep tank which also forms a vehicle deck
would have ta
= 2,0 for the top plate and ta
= 2,5 for the bottom plate.
4.6.3 For the
protection of steelwork, in addition to the requirements specified
in Ch 3, 5 Overlay scantling requirements, any ship which is regularly
to be discharged by grabs the thickness of the top plating is to be
increased by the allowances given below. Inner bottom and hopper plating:
- Continuous wooden ceiling: 2,0 mm
- No continuous wooden ceiling: 3,7 mm
Table 3.4.1 Thickness allowance
Structural elements
|
taR
|
ta1
|
ta2
|
Bottom shell
|
1,0
|
0,0
|
1,0
|
Side shell
|
1,0
|
0,0
|
1,0
|
Inner bottom, hopper
plating
|
2,0
|
1,0
|
1,0
|
Inner bottom at crown
of tank
|
3,5
|
1,0
|
2,5
|
Strength deck
|
2,5
|
2,5
|
0,0
|
Internal decks
|
0,0
|
0,0
|
0,0
|
Superstructure
decks
|
0,0
|
0,0
|
0,0
|
Watertight
bulkheads
|
0,0
|
0,0
|
0,0
|
Deep tank
bulkheads
|
2,5
|
0,0
|
2,5
|
Deep tank crowns
which is also a deck
|
3,5
|
1,0
|
2,5
|
Vehicle deck clear of
tanks
|
2,0
|
2,0
|
0,0
|
Symbols
|
taR
|
= |
rule thickness allowance, in mm |
ta1
|
= |
thickness allowance for the top plate, in mm |
ta2
|
= |
thickness allowance for the bottom plate, in mm
(steel plating to which primary members are attached) |
|
|
