1.1 The Long-Range Identification and Tracking
(LRIT) system, which provides for the global identification and tracking
of ships, consists of the shipborne LRIT information transmitting
equipment, the Communication Service Provider(s) (CSPs), the Application
Service Provider(s) (ASPs), the LRIT Data Centre(s) (DCs), including
any related Vessel Monitoring System(s) (VMSs), the LRIT Data Distribution
Plan (DDP), and the International LRIT Data Exchange (IDE). For the
LRIT system to operate efficiently, all components of the LRIT system
need to work seamlessly together to ensure the end-to-end transmission
of messages between DCs requesting and providing LRIT information.
1.2 The provisions of SOLAS regulation V/19-1, the Revised
performance standards and functional requirements for the long-range
identification and tracking (LRIT) of ships (the Revised
performance standards, adopted by resolution
MSC.263(84), as amended, and the Technical specifications for
the LRIT system (MSC.1/Circ.1259/Rev.6) include a number of performance
expectations of system components and thus of the LRIT system as a
whole.
1.3 LRIT information is provided to SOLAS Contracting
Governments and search and rescue (SAR) services entitled to receive
the information, upon request, through a system of National, Regional,
Cooperative and International DCs, applying applicable elements from
the DDP provided by the DDP server and using the IDE to route all
messages between DCs. Individual DCs, the DDP server and the IDE are
key interdependent system components that need to be continuously
maintained in order to meet the expectations of SOLAS Contracting
Governments and SAR services to receive prompt and reliable LRIT information.
1.4 While DCs, the IDE and the DDP server have
been designed to ensure that SOLAS Contracting Governments and SAR
services are provided in a timely manner the LRIT information they
are entitled to receive upon request or as a result of standing orders,
it is recognized that from time to time these system components may
need temporarily to suspend their operations or to reduce the level
of service provided in order to carry out, inter alia, scheduled or
unscheduled maintenance or upgrade of hardware or software in use,
or to manage or control unforeseen events such as malicious network
attacks or deal with external reasons such as unavailability of, or
access to, telecommunication networks, or to the internet or to conduct
emergency or urgent repairs or maintenance which cannot be deferred
to a later time.
1.5 The procedures for the notification, reporting
and recording of temporary suspensions of operations of, or reduction
of the service provided by, components of the LRIT system (the procedures
for temporary suspension of operations or reduction of the service
provided) set out in annex 2 to the annex to MSC.1/Circ.1294/Rev.4,
provide procedures to be followed by DCs, the IDE and the DDP server
when providing salient information to other components of the LRIT
system and the LRIT Coordinator in cases where they have to temporarily
suspend operations or reduce the level of service provided in cases
of scheduled or planned activities and unforeseen events. These procedures
also set out the records to be kept in such circumstances and their
availability.
1.6 The procedures for temporary suspension of
operations, or reduction of the service provided, are the first steps
in building a more comprehensive Continuity of service plan for the
LRIT system (the Continuity of service plan). Continuity management
is the process by which plans are put in place and managed to ensure
that information technology systems, such as LRIT, can recover and
resume normal operations after a temporary suspension of operations
or a reduction of the service provided, as well as in the event of
a serious disaster. It is not just about reactive measures, but also
about preventive measures – reducing the risk of downtimes and
disaster in the first instance.
1.7 The LRIT system presents particular challenges
as it is an interdependent and international system. The IDE, the
DDP server and all DC operators must work collaboratively to ensure
the continuing smooth operation of the LRIT system on a day-to-day
basis, which in the event of a disaster or other unforeseen event
may necessitate making major operational decisions within a very short
time frame. A Continuity of service plan provides the globally agreed
framework within which those decisions should be taken.
1.8 Incident management, which is primarily concerned
with resolving the situation and getting the system back up and running,
is only one element of a Continuity of service plan. The Continuity
of service plan must also address problem management, which focuses
on determining the root cause of an event and interfaces with change
management to ensure that the problem is not a recurrent event.
1.9 A change management plan for matters related
to the LRIT system is therefore an important component of the Continuity
of service plan. One of the critical issues that needs to be agreed
relates to the concept of a Change Control Board and overall ongoing
governance of the LRIT system. This plan addresses elements to be
considered in such a Board without presuming to prescribe its composition.
2
Temporary suspension versus
disaster recovery
2.1 Interruptions to the continuity of service
of the LRIT system could occur as a result of either a planned or
unplanned temporary suspension or reduction of the service provided
of any system component, as well as a more full-scale disaster resulting
in a critical failure that necessitates a comprehensive disaster recovery
plan and corresponding procedures.
2.2 The Continuity of service plan contains processes
and procedures to address both the more routine temporary suspension,
as well as measures to be taken in the event of critical failure.
While such a plan must look at the system as a whole, given that there
are three types of major system component in the LRIT system: the
IDE, the DDP server and the individual DCs, it should outline measures
to be taken in the event of, firstly, a temporary suspension or reduction
of the service provided of each of these individual components; and,
secondly, a disaster that results in a critical failure of each component.
2.3 The IDE is a message handling service that
facilitates the exchange of LRIT information amongst DCs to enable
LRIT Data Users to obtain the LRIT information they are entitled to
receive. The IDE routes LRIT information between DCs using the information
provided in the DDP. Any suspension of operations or reduction of
the service provided by the IDE has direct and immediate implications
across the entire LRIT system. A critical failure of the IDE without
a comprehensive disaster recovery plan would effectively shut down
the LRIT system. There is therefore a requirement for the IDE operator
to make significant and real time operational decisions 24 hours a
day, 365 days a year.
2.4 The DDP provides operational rules facilitating
the exchange of LRIT information between DCs. Unlike the IDE, a transient
failure of the DDP server to provide notifications and downloads of
the DDP would not necessarily completely prevent the LRIT system from
continuing to function, as messages can continue to be exchanged between
DCs via the IDE, disabling the DDP version number checking function.
2.5 However, the unavailability of the DDP server
could affect in particular DCs or the IDE, depending on the timing
and requirements of those components for obtaining the latest versions
of the DDP, potentially having serious ramifications on the normal
operation of the LRIT system as a whole.
2.6 Furthermore, for compliance with the provisions
of SOLAS regulation V/19-1, the availability of the DDP server should
be regarded as a priority equal to that of the IDE, in order to ensure
that the system is operating in accordance with the predetermined
rules at all times.
2.7 The Revised performance standards stipulate
that all DCs should establish and continuously maintain systems which
ensure, at all times, that LRIT Data Users are only provided with
the LRIT information they are entitled to receive as specified in
SOLAS regulation V/19-1. In order
to meet these requirements, DCs should have procedures and processes
in place to address planned or unplanned interruptions to their systems.
If a DC is not functioning, or is functioning at reduced capacity,
the impact is felt by every other component of the system that relies
on that DC to provide timely LRIT information. There is, therefore,
an expectation that DCs have a 24-hour point of contact, identified
in the DDP, in the event of an impediment to continuity of service.
3
Temporary suspensions of
operations or reduction of the service provided
Notifications between components of the LRIT system
3.1 All notifications between components of the
LRIT system should be performed using the contact details provided
in the latest available version of the DDP.
3.2 The IDE should provide the necessary functionality
in the IDE administrative interface to perform all notifications and
publish and update advisory notices.
3.3 Access to the IDE administrative interface
should be provided to the persons in charge of the operation of the
IDE, the DDP Server, all DCs, and the LRIT Coordinator, as listed
in the DDP.
3.4 Whenever a new advisory notice is published,
updated or removed, the IDE should automatically advise the persons
in charge of the operation of the IDE, the DDP Server, all DCs and
the LRIT Coordinator, as listed in the DDP.
Scheduled or planned activities requiring temporary
suspension of operations or reduction of the level of service
3.5 System components requiring temporary suspension
of operations or reduction of the level of service due to scheduled
or planned activities should:
-
.1 publish an advisory notice on the IDE Administrative
Interface at least five (5) days prior to the temporary suspension
of operations or reduction of the level of service;
-
.2 confirm the advisory notice no later than 24
hours prior to the scheduled activity; and
-
.3 remove the advisory notice after resuming normal
operation.
3.6 The advisory notice should include information
on the planned or scheduled activities to be conducted; indicate the
dates and times between which the activities would take place; supply
information on the consequences of the activities (for example, the
IDE would not be available to provide services or the DDP server would
be operating at a reduced rate); and advise, if possible, any measures
or arrangements which the other components of the LRIT system may
need to have to put in place in order to ensure the speedy and efficient
resumption of normal operations or to manage any adverse effects.
If the circumstances warrant, an advisory notice can be published
for a group of DCs provided the person submitting the notification
is authorized to do so, as provided in the DDP.

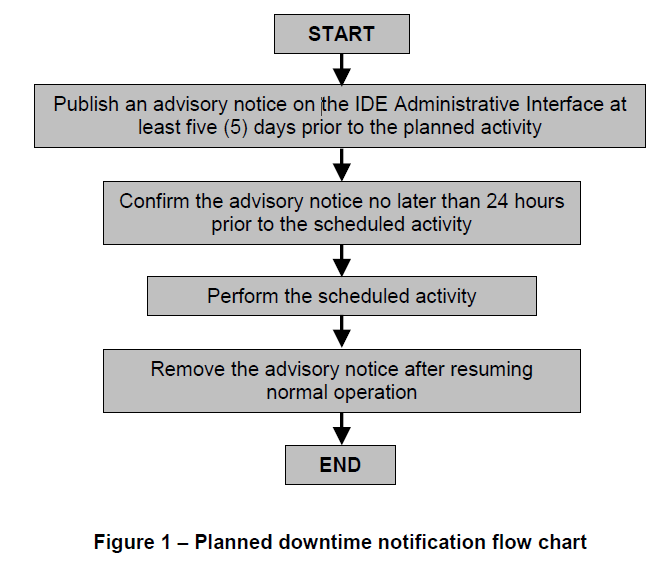

3.7 Figure 1 illustrates the steps to be taken
when a suspension of operations or reduction of level of service due
to scheduled or planned activities occurs:

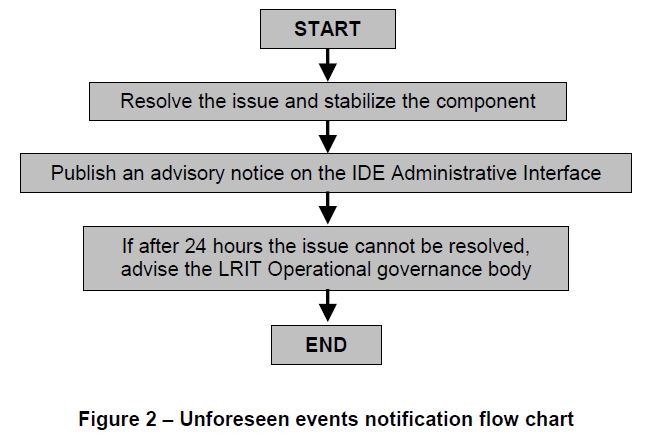

Unforeseen events requiring temporary suspension of
operations or reduction of the level of service
3.8 Having identified an issue, the DC concerned,
the IDE or the DDP server, as the case may be, should work collaboratively
to resolve the issue. This may include contacting other components
of the LRIT system using the contact details of the designated points
of contact provided in the DDP.
3.9 Upon recognition or notification of an unforeseen
event requiring temporary suspension of operations or reduction of
the level of service, the system component concerned, the IDE or the
DDP server, as the case may be, should try to resolve the issue and
stabilize the component and, in particular:
-
.1 publish an advisory notice on the IDE Administrative
Interface providing relevant information and including the expected
time for resuming normal operation. Such a notice should be updated
as and when developments occur;
-
.2 if, after 24 hours, the issue cannot be resolved,
advise the LRIT Operational governance bodyfootnote, identifying the issue along with the measures
or actions to be taken; and
-
.3 once the system component concerned resumes
or restores normal operation, remove the advisory notice from the
IDE Administrative Interface.
3.10 If the issue is identified by the IDE or
the DDP server, then the system component concerned should be contacted
to resolve the issue. If the system component concerned cannot be
contacted within 24 hours, then the IDE or the DDP server, as the
case may be, should publish an advisory notice on the IDE Administrative
Interface on behalf of the system component concerned.
3.11 Figure 2 illustrates the steps to be taken
when a suspension of operations or reduction of level of service due
to unforeseen events occurs:
Identification of degradation in the level of LRIT
service
3.12 If the IDE, the DDP server or a DC operator
encounter degradation in the level of LRIT service as the result of
issues believed to be the result of another component of the LRIT
system, then the following actions should be taken:
-
.1 review known issues posted on the IDE Administrative
interface to determine if the issue encountered was already identified
by another system component;
-
.2 if required, use the tools available on the
IDE Administrative interface to assist in troubleshooting the issue.
This, for example, may include checking the IDE journal for routeing
of LRIT messages or other networking functions;
-
.3 if the issue identified was the result of another
LRIT system component, then the system component concerned should
be contacted using the contact information available in the DDP; and
-
.4 if the system component is unable to resolve
the issue after directly contacting the system component associated
with the problem, or if the system component is unsure of the origins
of the issue, and if the issue has reduced the operational capability
of the system or is causing the LRIT system to not perform as designed,
then the system component should follow the procedures specified in
paragraphs 3.8 to 3.10 above.
3.13 In accordance with the Technical specifications
for communications within the LRIT system, DCs and the DDP server,
as the case may be, should transmit System status messages
to the IDE every 30 minutes. These are being transmitted in order
to provide the IDE with information pertaining to the operational
status of the system component concerned.
3.14 If the IDE does not receive eight (8) consecutive
System status messages from a specific DC or the DDP server, or if
the IDE cannot successfully send eight (8) consecutive System status
messages to a specific DC or the DDP server due to problem at the
receiving end, and there has been no scheduled or unscheduled notification
or advisory notice posted on the IDE Administrative interface by the
DC concerned or the DDP server, then the IDE operator should post
an advisory notice to the IDE Administrative interface and follow
the procedures specified in paragraph 3.12 above. Upon notification,
the DC concerned or the DDP server should follow the procedures specified
in paragraph 3.9 above.
Issues related to the DDP version number checking
function
3.15 In accordance with the Technical specifications
for the International LRIT Data Exchange, the IDE should have the
functional capability to validate the DDP version number contained
in all received LRIT messages against the version number of the latest
available version of the DDP.
3.16 The IDE operator is authorized to disable
the DDP version checking function under circumstances that may cause
or have caused a significant number of DCs and their associated SOLAS
Contracting Government(s) not to be in conformance with the latest
available version of the DDP and implemented by the IDE.
3.17 After disabling the DDP version number checking
function, the IDE operator should follow the procedures specified
in paragraph 3.12 above.
3.18 Once the issue is resolved, the IDE should
enable the DDP version number checking function and advise all system
components in accordance.
Invalid DDP upload (malicious or inadvertent)
3.19 Cases where the DDP file provided by the
DDP server is invalid or cannot be properly processed may be separated
into two categories:
-
.1 DDP content improperly formed (i.e. inverted
polygons or other data contained within the DDP, where the DDP remains
valid as per the XML schema); and
-
.2 a DDP file which is corrupted or otherwise
invalid with regard to the XML schema.
3.20 In addition to the DDP processing procedures
specified in sections 2.3.2 and 2.3.2A of the Technical specifications
for communications within the LRIT system and in paragraph 3.12 above,
the DDP server operator, after being notified of an issue, should
take the following actions:
-
.1 analyse the reported problem and verify the
issue. If required, the DDP server operator should request the IDE
to disable the DDP version number checking function;
-
.2 advise all DCs, the IDE and the LRIT Coordinator
about the issue;
-
.3 take all necessary actions to return all affected
DDP versions to a valid state, including contacting the designated
national points of contact for LRIT-related matters of the SOLAS Contracting
Government(s) concerned, or removing or modifying data associated
with the problem;
-
.4 contact the IDE and confirm that the issue
has been resolved; and
-
.5 restore normal operation and notify all DCs,
the IDE and the LRIT Coordinator, specifying any necessary actions
to be observed or executed.
3.21 The Secretariat should report accordingly
to the Maritime Safety Committee about any issue(s) with the DDP,
as well as any subsequent action(s).
PKI certificate compromise
3.22 The Organization, acting as PKI Certificate
Authority (CA), issues PKI certificates for the testing and production
environments of the LRIT system for use by DCs, the IDE and the DDP
server in relation to communications within the LRIT system.
3.23 If a system component identifies an issue
which may compromise the security of a PKI certificate, then the CA,
after being notified of an issue, should take the following actions:
-
.1 as soon as a breach in security related to
an issued PKI certificate(s) is discovered, the CA should notify the
IDE and the DDP server operators. The IDE and DDP server operators
should take immediate action to disable all communications using the
compromised PKI certificate(s);
-
.2 revoke, in due course, the compromised PKI
certificate(s) and publish an updated Certificate Revocation List.
If necessary, the CA should contact the person in charge of the affected
component for further information on the issue. The affected system
component may submit a request for the issue of a new PKI certificate
to the CA in accordance with the procedures issued by the Organization;
and
-
.3 issue a new PKI certificate(s) for the affected
system component to resume normal operation.
3.24 Any notification about PKI compromise should
be originated from the person in charge of the DC, the IDE or the
DDP server, as the case may be, or from a designated national point
of contact for LRIT-related matters of a SOLAS Contracting Government.
3.25 The system component affected should also
follow the procedures specified in paragraph 3.9 above.
3.26 The Secretariat should report accordingly
to the Maritime Safety Committee about any issue with PKI certificates,
as well as any subsequent action(s).
PKI Changeover procedures
3.27 The following procedures should be observed
during the PKI changeover:
-
.1 all PKI certificates should expire on the same
date;
-
.2 the CA should be available before, during and
after the time of changeover;
-
.3 the PKI changeover date should be, at minimum,
two (2) weeks prior to expiration of the PKI certificates;
-
.4 new PKI certificates should be distributed
at least two (2) weeks prior to the changeover date; and
-
.5 requests for the issue of PKI certificates
should be submitted no less than six (6) weeks prior to the PKI changeover
date.
4.1
IDE Disaster Recovery
Critical failure circumstances
4.1.1 A critical failure circumstance could take
place if the IDE sustains a critical failure (e.g. sustained power
outage, sustained network connectivity degradation, etc.) at its host
site and is not able to be reconstituted on hardware at the local
host site and therefore must failover to hardware at the IDE Disaster
Recovery (DR) site.
4.1.2 It is expected that an IDE DR capability
would be provided for the IDE by either the primary IDE Operator or
another entity.
IDE DR planning considerations
4.1.3 In accordance with the Technical specifications
for the LRIT system, the IDE should have a DR site accessible every
day of the year 24 hours a day.
4.1.4 The IDE DR site should have:
-
.1 full operational functionality, except for
partial access to the IDE Journal during the DR period;
-
.2 off-site storage of both full and incremental
backups, including backups of the journal; and
-
.3 data and PKI synchronization at a minimum every
six (6) hours with the production environment of the LRIT system.
The IDE should only be offline for a maximum period of four (4) hours.
With the synchronization set to six (6) hours, there is a realized
risk of a maximum loss of up to 10 hours of journal information for
the IDE.
4.1.5 The IDE operator should be cognizant of
firewall restrictions at the DR site and should ensure there are no
restrictions at the DR site on the IP addresses accessing the production
system.
4.1.6 To institute a failover to the DR site,
a Domain Name Server (DNS) change is required. Most systems should
be set up to refresh within 15 minutes automatically. The DNS record
for the IDE should be set up to expire and refresh every 10 minutes.
However, if this switch does not automatically happen, then some systems
components may need to be rebooted to institute the change. Upon refresh
or reboot all systems components should be operational.
4.1.7 While the IDE is failing over to the IDE
DR site, the DDP version number checking function should be disabled
until the IDE operator determines that the system is stable.
4.1.8 The IDE DR should be tested once a year
in the production environment and as determined by the IDE operator.
The IDE should follow the notification procedures identified in the
Procedures for temporary suspension of operations and reduction of
level of service. The switchover of the IDE DR in production should
be communicated in advance to the LRIT Operational governance bodyfootnote. Critical success factors for the planned
test should also be communicated via the notification process.
IDE DR management considerations
4.1.9 The IDE should be switched to the IDE DR
site if the IDE operator estimates the downtime to fix an unplanned
outage could take more than two (2) hours. The changeover can take
up to two (2) hours. This provides for up to four (4) hours of service
unavailability in the event of a critical failure of the IDE at its
primary site, before which normal service should be resumed through
the IDE DR site.
4.1.10 Upon activation of the IDE DR process,
the IDE operator should advise all DCs, the DDP server and the LRIT
Coordinator that the IDE DR will be activated. If for any reason the
IDE cannot perform the communication, then the IDE operator should
contact the DDP server operator and request to perform the communication.
4.1.11 If the IDE DR site operator notes that
three (3) or more System status messages from the IDE have been missed
and there has been no scheduled or unscheduled notification or advisory
notice posted on the IDE Administrative interface, then the IDE DR
site operator should attempt to contact the IDE operator to determine
the nature of problem. If, within 30 minutes, the IDE DR site operator
is unable to contact the IDE, then the IDE DR site should advise all
DCs and the LRIT Coordinator that there is a problem with the IDE
and that the process for a failover to the IDE DR site is being activated.
4.1.12 Once the IDE DR site is activated, the
IDE should advise all DCs, the DDP server and the LRIT Coordinator
indicating that the IDE DR operation is ready and commencing, the
IDE DR plan is now in place and the instructions previously agreed
upon and documented should be implemented.
4.1.13 The IDE should remain at the IDE DR site
as long as necessary and until the IDE operator determines that the
primary site is ready for a return to normal operations. As soon as
the primary location is ready, the IDE operator should advise all
DCs, the DDP server and the LRIT Coordinator at least 24 hours prior
to the return to the primary location.
4.1.14 Upon recovery to the primary location,
the IDE operator should complete a report as required in the procedures
for temporary suspension of operations and reduction of level of service.
4.1.15 Full 24/7 support and operation of the
DDP server to allow endpoint for PKI to be updated and for supporting
the notification process, if necessary.
4.1.16 Synchronization with the production environment
of the LRIT system (data, PKI certificates).
4.2
DDP server Disaster Recovery
Critical failure circumstances
4.2.1 A critical failure circumstance could take
place if the DDP server sustains a critical failure preventing it
from normal operation within the LRIT system, (e.g. sustained power
outage, sustained network connectivity degradation, etc.) at its host
site and is not able to be reconstituted on hardware at the local
host site and therefore must failover to hardware at the DDP server
DR site.
4.2.2 It is expected that a DR capability, including
a 24-hour monitoring of the operational system for issue resolution
and the handling of DDP server DR failover, will be provided by the
Organization.
DDP server DR site planning considerations
4.2.3 In accordance with the Technical specifications
for the LRIT system, the DDP server should have a DR site accessible
every day of the year 24 hours a day.
4.2.4 During an unplanned outage, the DDP server
operator shall have up to two (2) hours to resolve the issue and restore
DDP server functionality. If the outage is estimated from the outset
to require more than two (2) hours to resolve, or if after two (2)
hours the service cannot be restored, the transitioning process to
the DDP server DR site should be initiated. The transition process
may take up to two (2) hours to be completed. This provides for up
to four (4) hours of service unavailability in the event of a critical
failure of the DDP server at its primary site, before which normal
service should be resumed through the DDP server DR site.
DR infrastructure considerations
4.2.5 The DDP server system hosted at the DR site
should have full operational functionality, providing all services
as on the primary site during normal operation. The DDP server DR
site should be maintained on an ongoing basis and be kept synchronized
with the DDP server system at the primary site, in order to facilitate
an emergency failover at any time.
4.2.6 In order to keep technical complexities
within reasonable limits, the DDP server DR site may lag up to six
(6) hours behind the DDP server at the primary site during normal
operation. As a consequence, up to six (6) hours of system data may
be irrecoverably lost should the DR plan be activated.
4.2.7 The transition to the DDP server DR site
during a failover exercise should be as seamless as possible to minimize
the impact on the LRIT system. The DNS entry of the DDP server should
be set up to expire and refresh every 10 minutes to reflect its IP
address at the DDP server DR site. This approach avoids the need to
change the DDP server's web service URI and therefore the requirement
for having a separate PKI certificate for the DDP server DR site.
The IP address of the DDP server DR site should be communicated well
in advance to all LRIT system components to enable firewalls and other
routing devices to permit normal communications with the DDP server
at its DR location.
4.2.8 The DDP server should participate in, and
execute, planned DR failover tests of the LRIT system together with
all other components, in accordance with the procedures adopted for
such testing.
4.2.9 It is noted that the DDP server is implemented
as a module of the GISIS system, and all provisions for the DR, and
downtime related to the DR testing, would apply to the GISIS system
as a whole, including the accessibility of all modules by Member States
and members of the public.
4.2.10 Upon activation of the DDP server DR process,
the DDP server operator should advise all DCs, the IDE and the LRIT
Coordinator that the DDP server DR will be activated. If for any reason
the DDP server cannot perform the communication, then the DDP server
operator should contact the IDE operator and request to perform the
communication. If required, the DDP server operator should request
the IDE to disable the DDP version number checking function.
4.2.11 If the IDE operator notes that three (3)
or more System status messages from the DDP server have been missed
and there has been no scheduled or unscheduled notification or advisory
notice posted on the IDE Administrative interface, then the IDE operator
should attempt to contact the DDP server operator to determine the
nature of problem. If, within 30 minutes, the IDE operator is unable
to contact the DDP server, then the IDE should advise all DCs and
the LRIT Coordinator that there is a problem with the DDP server and
that the process for a failover to the DDP server DR site could be
activated.
4.2.12 Once the DDP server DR site is activated,
the DDP server operator should advise all DCs, the IDE and the LRIT
Coordinator indicating that the DDP server DR operation is ready and
commencing, the DDP server DR plan is now in place and the instructions
previously agreed upon and documented should be implemented.
4.2.13 The DDP server operator should also contact
the IDE and confirm that the DDP version numbers are in sequence.
If after the re-establishment of service at the DDP server DR site,
the DDP versions of the IDE and/or DCs are no longer synchronized
with the latest DDP version published by the DDP server, then the
DDP server operator should take the necessary action to publish a
new version of the DDP at an appropriate version number to ensure
all components are able to retrieve and consistently apply the new
version of the DDP. During this time the DDP version number checking
should remain disabled until all DCs and the IDE can implement the
current/new version of the DDP.
4.2.14 The DDP server should remain at the DDP
server DR site as long as necessary and until the DDP server operator
determines that the primary site is ready for a return to normal operations.
As soon as the primary location is ready, the DDP server operator
should advise all DCs, the IDE and the LRIT Coordinator at least 24
hours prior to the return to the primary location.
4.2.15 Upon recovery to the primary location,
the DDP server operator should complete a report as required in the
procedures for temporary suspension of operations and reduction of
level of service.
DDP server DR dependencies
4.2.16 Full 24/7 support and operation of the
IDE for supporting the notification process, if necessary.
4.2.17 Synchronization with the production environment
of the LRIT system (data, PKI certificates).
