Interpretation Discharge arrangements of permanent ballast tanks sited immediately adjacent to cargo tanks (Paragraph 3.5.1)

 An eductor situated in the cargo area using water power from the machinery spaces is acceptable for discharge purposes provided a non-return valve and means of separation are fitted in the supply line and the supply line is above deck level. A non-return valve and means of separation should be located outside the machinery space (see figure 4).

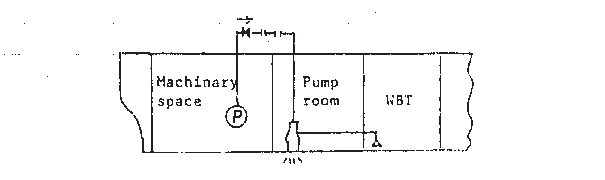

Figure 4 Discharge arrangement of permanent ballast tanks sited immediately adjacent to cargo tanks
