Dimension
(see Figures)
|
Description
|
Requirement
(mm)
|
| A
|
Width of work area between container

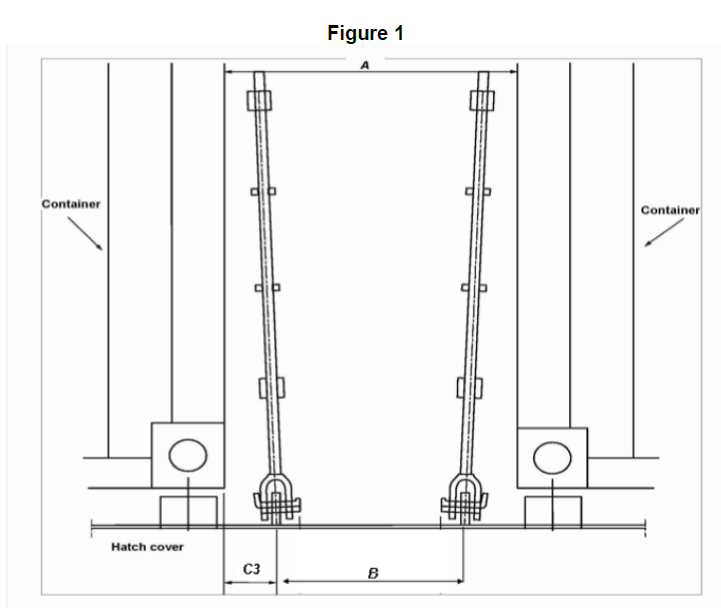

stacks(see figure 1)
|
750 minimum
|
| B
|
Distance between lashing plates on deck
or on hatch covers (see figure 1)
|
600 minimum
|
| C1
|
Distance from lashing bridge fencing to

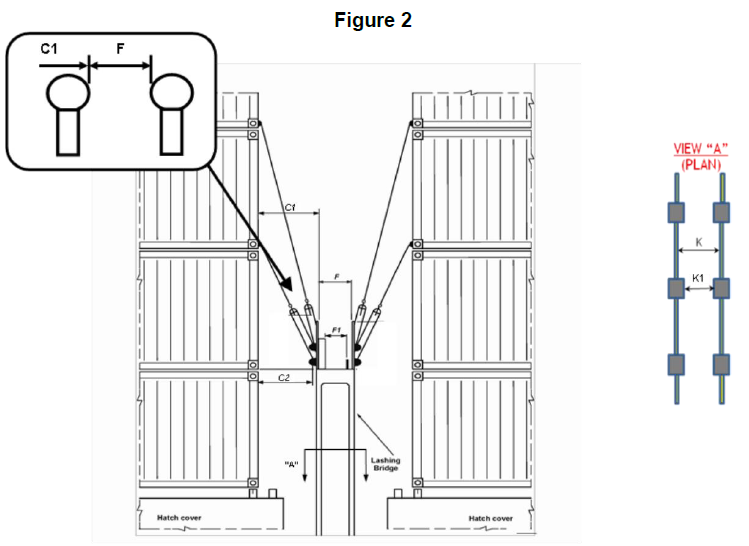

container stack (see figure 2)
|
1100 minimum
|
| C2
|
Distance from lashing plate to container
stack (lashing bridge) (see figure 2)
|
220 minimum
|
| C3
|
Distance from lashing plate to container
stack (elsewhere) (see figures 1 and 4)
|
130 minimum
|
| F
|
Width of lashing bridge between top rails
of fencing (see figure 2)
|
750 minimum
|
| F1
|
Width of lashing bridge between storage
racks, lashing cleats and any other obstruction (see figure 2)
|
600 minimum
|
| GL
|
Width of working platform for outboard

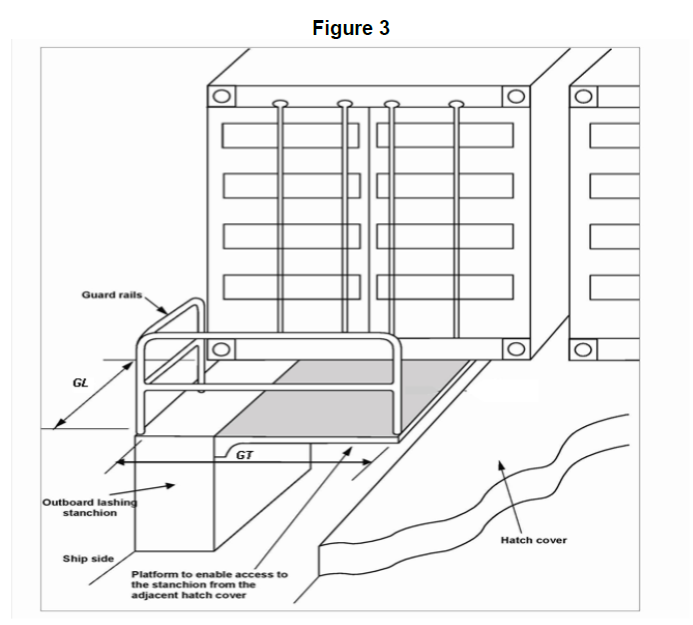

lashing – fore/aft (see figure 3)
|
750 minimum
|
| GT
|
Width of working platform for outboard
lashing – transverse (see figure 3)
|
750 minimum
|
| I
|
Width of work platform at end of hatch

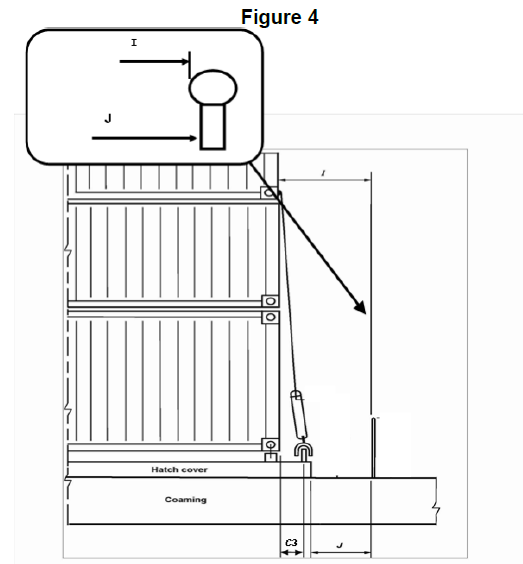

cover or adjacent to superstructure (see figure 4)
|
750 minimum
|
| J
|
Distance from edge of hatch cover to
fencing (see figure 4)
|
600 minimum
|
| K
|
Width of lashing bridge between top
rails of fencing (see figure 2)
|
750 minimum
|
| K1
|
Width of lashing bridge between the
pillars of the lashing bridge (see figure 2)
|
600 minimum
|
| NOTES
|
|
| B
|
–
|
Measured
between the centres of the lashing plates.
|
| C1
|
–
|
Measured
from inside of fencing.
|
| C2, C3
|
–
|
Measured
from centre of lashing plate to end of container.
|
| F, K
|
–
|
Measured to
inside of fencing.
|
| GL
|
–
|
Measured
from end of container to inside of fencing.
|
| GT
|
–
|
Measured to
inside of fencing.
|
| I
|
–
|
Measured to
inside of fencing.
|
| J
|
–
|
Measured to
inside of fencing.
|
