Guidance for compliance with survey and certification of
marine diesel engines, as described in chapter
2 of this Code, is given in figures 1, 2 and 3 of this appendix:
-
Figure 1: Pre-certification survey at the manufacturer’s
facility
-
Figure 2: Initial survey on board a ship
-
Figure 3: Renewal, annual or intermediate survey
on board a ship
Note:
These flowcharts do not show
the criteria for the certification of an existing engine as required
by regulation 13.7.

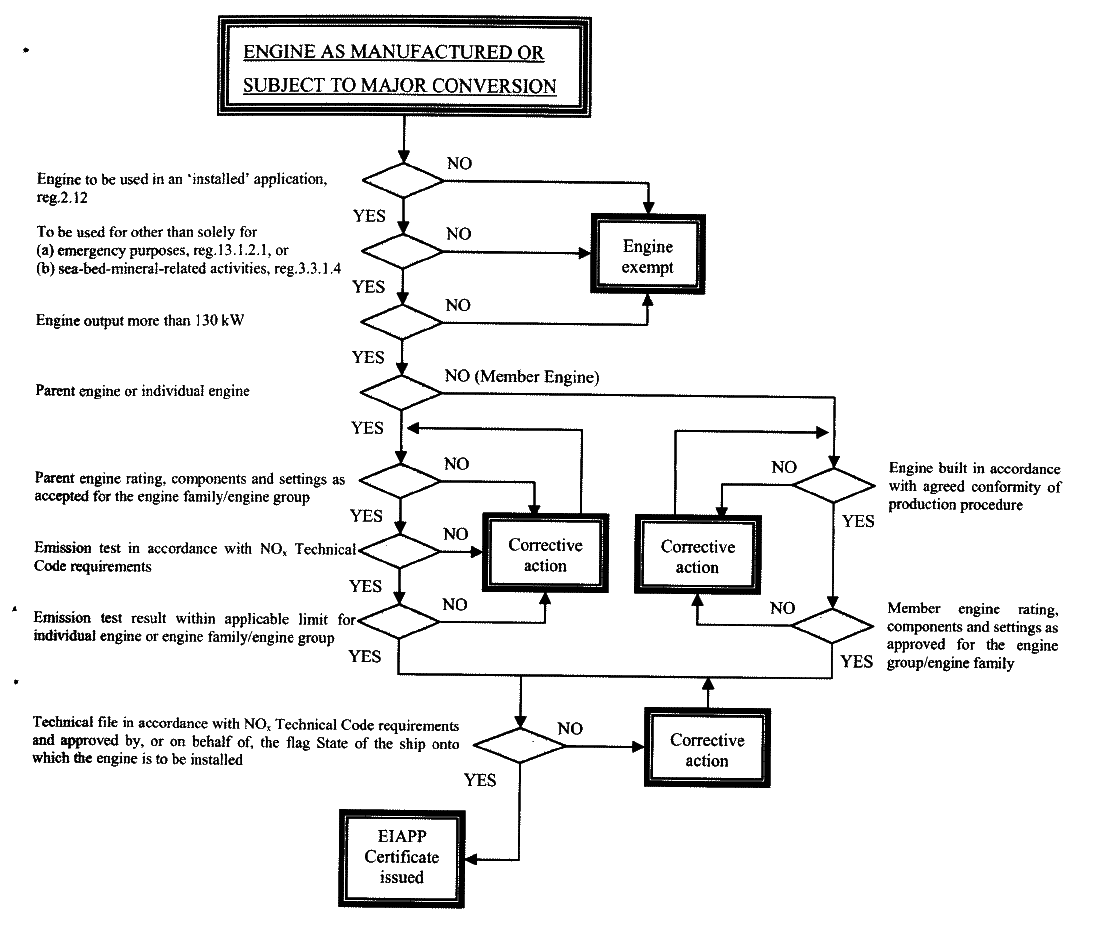

Figure 1 Pre-certification survey at the manufacturer's facility
Figure 2 Initial survey on board a ship

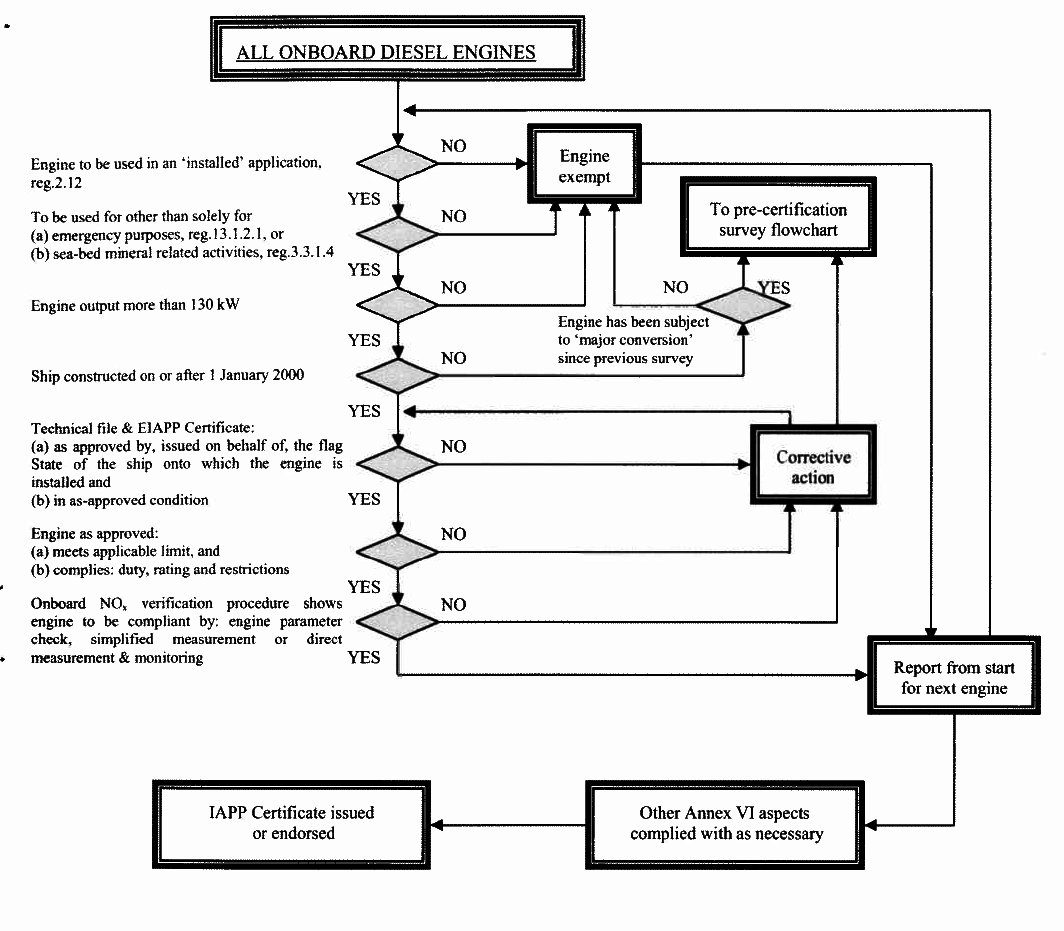

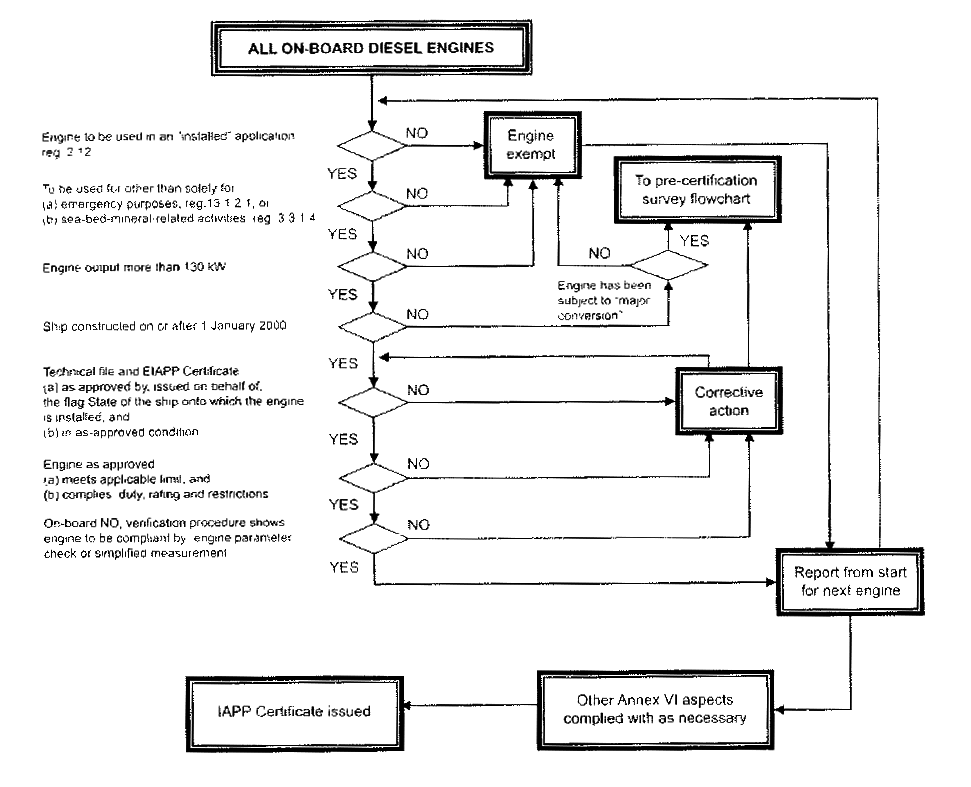

Figure 3 Renewal, annual or intermediate survey on board a ship
