Statutory Documents - IMO Publications and Documents - Circulars - Maritime Safety Committee - MSC/Circular.1120 – Unified Interpretations of SOLAS Chapter II-2, the FSS Code, the FTP Code and Related Fire Test Procedures – (2 June 2004)Amended by MSC.1/Circular.1436 - Annex - Unified Interpretations of SOLAS Chapter II-2, the FSS Code, the FTP Code and Related Fire Test Procedures - Appendix - Explanatory Sketches - Regulation 9.3.4: Prevention of heat transmission by insulation and structural details for drainage1

Regulation 9.3.4: Prevention of heat transmission by insulation and structural details for drainage footnote

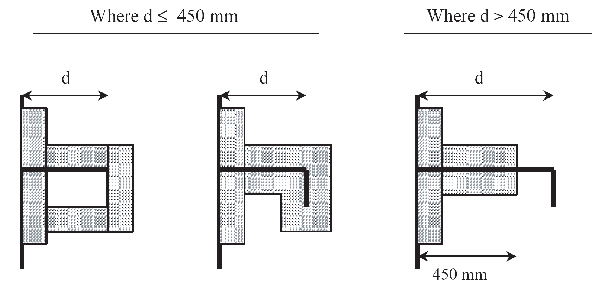

Figure 1

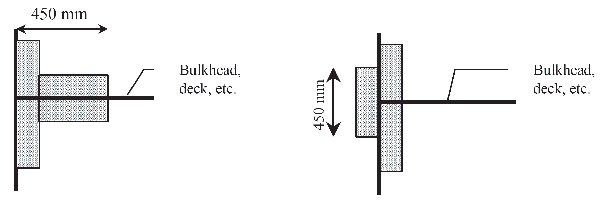

Figure 2

Figure 3

*Note:

d = Depth of stiffener on girder

* Lining and steel coaming/gutter bar are for accommodation spaces only.

** For the purpose of figure 3, bulkhead and deck are of steel construction only.
