8 Regulation 23.8.2

  8.1 Compartment boundaries Xa, Xf, Zl, Zu and y shall be developed as shown in the figures below. The shaded region represents the cargo tank under consideration.

Xa = the longitudinal distance from the aft terminal of L to the aft most point on the compartment being considered;
Xf = the longitudinal distance from the aft terminal of L to the foremost point on the compartment being considered;
Z1 = the vertical distance from the moulded baseline to the lowest point on the compartment being considered;
Zu = the vertical distance from the moulded baseline to the highest point on the compartment being considered. Zu is not to be taken greater than Ds; and
y = the minimum horizontal distance measured at right angles to the centreline between the compartment under consideration and the side.

Definition of Xa and Xf (Profile-looking inboard)

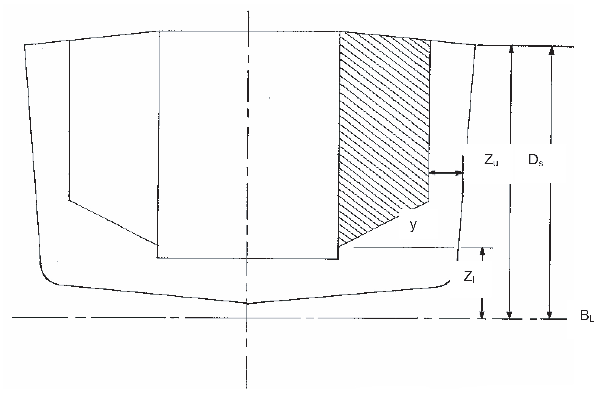

Zu, Z1 and y for outer cargo tank (Section looking forward)

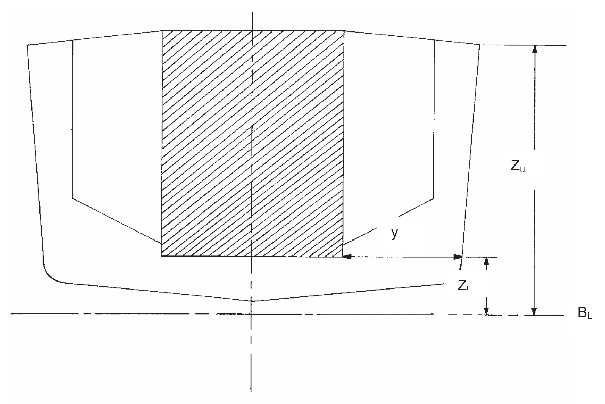

Zu, Z1 and y for outer centre cargo tank (Section looking forward)

 An example showing how to measure y, in particular for a mid-deck tanker, is shown below. y shall be measured at the position above 1.5h, where h is defined as per paragraph 2.2 of regulation 19 of the revised MARPOL Annex I.

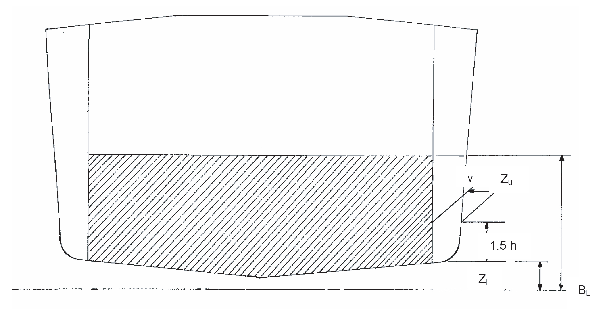

Zu, Z1 and y for mid-deck cargo tank (Section looking forward)
