3.6.4 Inert gas valve (see regulation 62.10.9)

 This valve should be opened when the inert gas plant is shut down to prevent leakage past the nonreturn devices from building up any pressure in the inert gas line between the gas pressure regulating valve and these nonreturn devices.

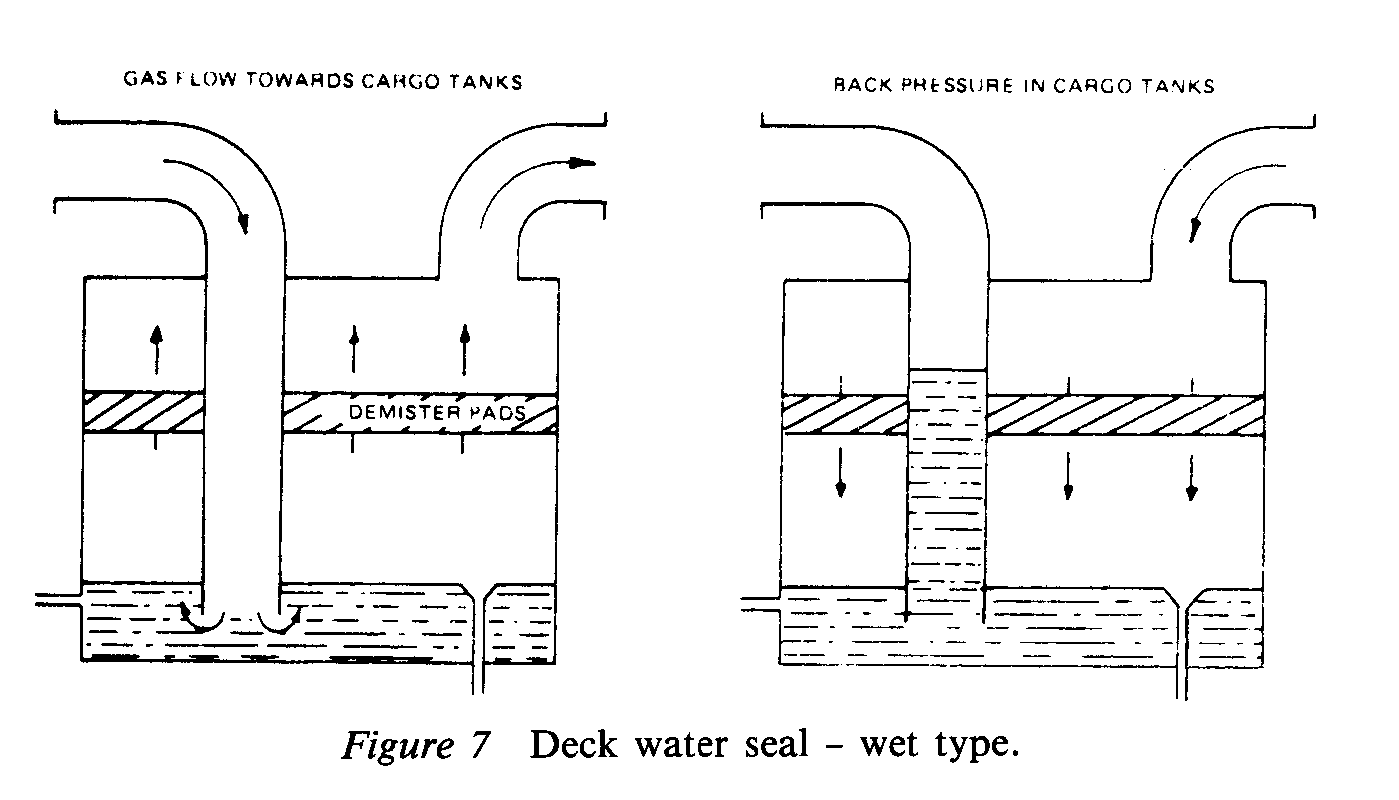

Deck water seal-wet type.

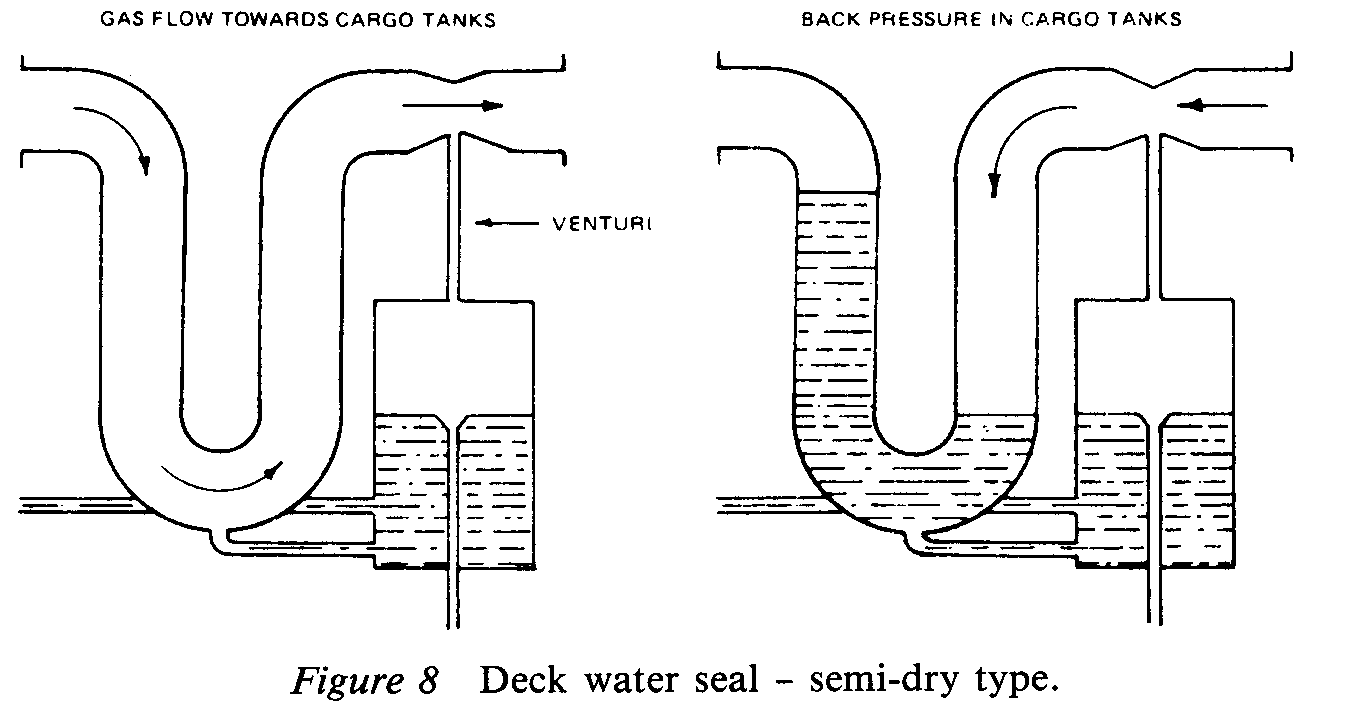

Deck water seal-semi-dry type.

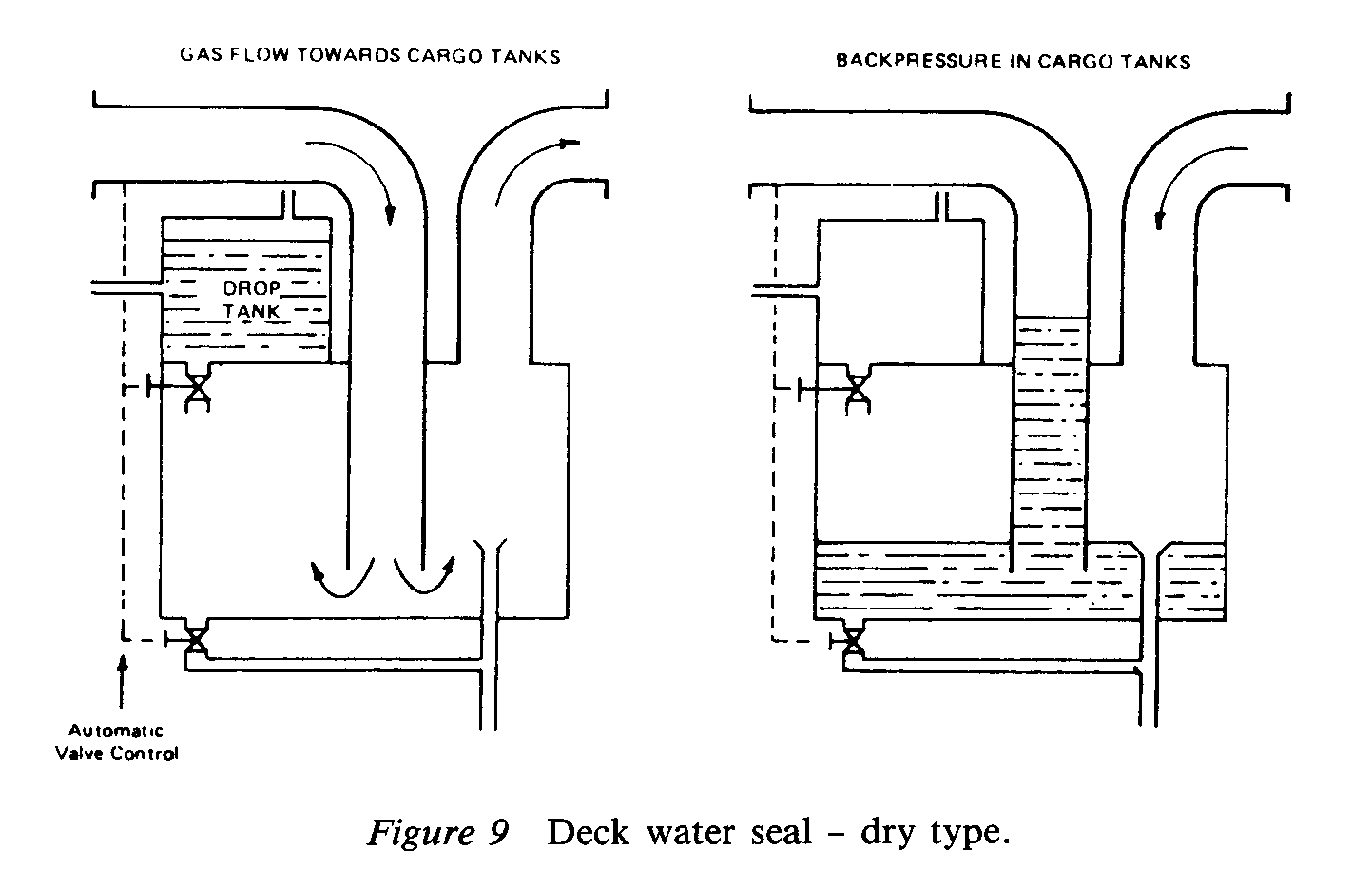

Deck water seal-dry type.
