Section 4 Stresses in facings
4.2 The stiffness, EI, per 1 cm width is determined using the parallel axis theorem:
In general,
where
|
y
|
= |
distance
of neutral axis above base (mm). |
4.3 It should be
noted that the factor 10 (width in mm) is introduced to correct the
value of area used in the parallel axis theorem, since a 1 cm wide
strip of material is considered in the calculations.
4.4 From the tabulated calculations the overall stiffness
of the section is calculated:
|
EI
sect
|
= |
1510439396 – (103699 x 10 x 27,362)
|
|
|
= |
1510439396 –
776259189 Nmm4/mm2
|
4.5 From Pt 8, Ch 3, 1 General of the Rules for Special
Service Craft the individual layer stresses are determined from:
The calculation of the tensile stress in the individual
layers becomes:
where
|
E
i
|
= |
modulus of elasticity of layer (N/mm2)
|
|
y
i
|
= |
distance of layer from the neutral axis (mm). |

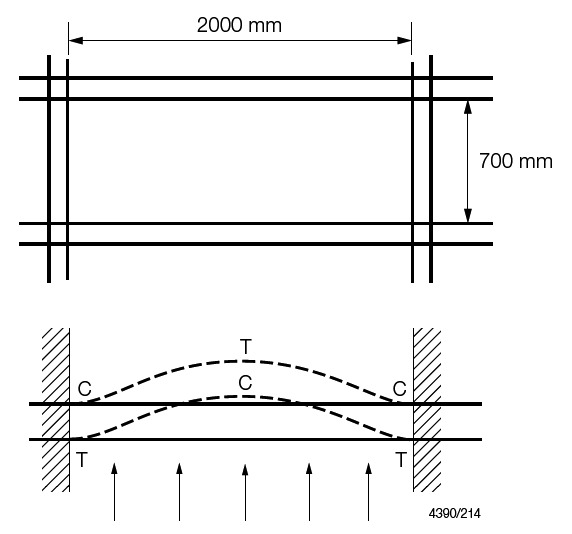

Figure 4.4.1 Regions of tension (T) and compression (C) in example model
4.6 Consider the
model as shown in Figure 4.4.1 Regions of tension (T) and compression (C) in example model.
-
Consider wet surface
in tension at the panel boundary:
-
Consider the CSM
reinforcement in the outer ply (450 g/m2 and G
c = 0,286)
|
σCSM
|
= |
23,2
x 10–6
E
t
y
i N/mm2
|
|
|
= |
23,2 x 10–6 x 6290 x 27,36 N/mm2
|
|
Stress factor |
= |
3,99/82,2
= 0,05 < 0,33 hence accept. |
-
Consider the WR reinforcement
in the in outer plies (600 g/m2 and G
c =
0,5)
|
y
i
|
= |
27,36 – 1,112 = 26,25 mm |
|
σWR
|
= |
23,2
x 10–6
E
t
y
i N/mm2
|
|
|
= |
23,2 x 10–6 x 14500 x 26,25 N/mm2
|
|
Stress factor |
= |
8,83/190
= 0,046 < 0,33 hence accept. |
-
Consider inner surface
in compression at the panel boundary:
-
Consider top WR reinforcement
in compression (600 g/m2 and G
c =
0,5)
|
y
i
|
= |
58,23 – 27,36 = 30,87 mm |
|
σWR
|
= |
23,2
x 10–6
E
c
y
i N/mm2
|
|
|
= |
23,2 x 10–6 x 14000 x 30,87 N/mm2
|
|
Stress factor |
= |
10,03/147
= 0,068 < 0,33 hence accept. |
-
Consider CSM reinforcement
in compression (300 g/m2 and G
c =
0,33)
|
y
i
|
= |
30,87 – (4 x 0,734) = 27,93 mm |
|
σCSM
|
= |
23,2
x 10–6
E
c
y
i N/mm2
|
|
|
= |
23,2 x 10–6 x 7200 x 27,93 N/mm2
|
|
Stress fraction |
= |
4,67/122
= 0,038 < 0,33 hence accept. |
Figure 4.4.2 Sandwich skin laminate details
4.7 Stress fractions
in this example are considerably lower than those required by the
Rules for Special Service Craft and it is evident that the design
is controlled by and core shear considerations and minimum skin thickness
requirements.
4.8 As indicated
in Chapter 2, Section Ch 3, 2 Concluding remarks 2.4 of
these Guidance Notes for Single Skin Laminates, consideration must
be given to the strain compatibility of the reinforcements incorporated
in the sandwich skins.
|
