3 Description of the system

Parent topic: Appendix 2 - Example of Application

3.1 Identification of assembly stations

 For both MVZ 1 and MVZ 2, the assembly stations are located at deck 8, which is also the embarkation deck.

3.2 Identification of escape routes

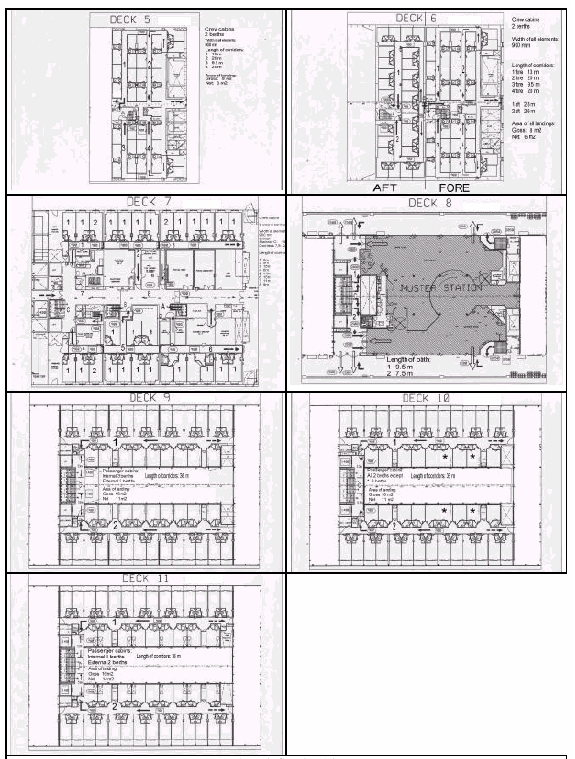

  3.2.1 In MVZ 1, the escape routes are as follows (see figure 3):

  • .1 Deck 5 is connected with deck 6 (and then deck 8 where assembly stations are located) through one stair (stair A) in the fore part of the zone. Four corridors (corridors 1, 2, 3 and 4) and two doors (respectively door 1 and 2) connect the cabins with stair A. The clear widths and lengths are:

    Item Wc (clear width)[m] Length [m] Area [m2] Notes
    MVZ1 – deck 5 – corridor 1 0.9 13 11.7 To door 1
    MVZ1 – deck 5 – corridor 2 0.9 20 18 To door 1
    MVZ1 – deck 5 – corridor 3 0.9 9.5 8.55 To door 2
    MVZ1 – deck 5 – corridor 4 0.9 20 18 To door 1
    MVZ1 – deck 5 – door 1 0.9 N.A. N.A. To stair A
    MVZ1 – deck 5 – door 2 0.9 N.A. N.A. To stair A
    MVZ1 – deck 5 – stair A 1.35 4.67 N.A. Up to deck 6

  • .2 Deck 6 is connected with deck 7 (and then deck 8) through two stairs (stairs A and B respectively in the fore and aft part of the zone). Four corridors (corridors 1, 2, 3 and 4) and two doors (doors 1 and 2) connect the fore cabins with stair A; and two corridors (corridors 5 and 6) and two doors (doors 3 and 4) connect the aft cabins with stair B. The clear widths and lengths are:

Item Wc (clear width)[m] Length [m] Area [m2] Notes
MVZ1 – deck 6 – corridor 1 0.9 13 11.7 To door 1
MVZ1 – deck 6 – corridor 2 0.9 20 18 To door 1
MVZ1 – deck 6 – corridor 3 0.9 9.5 8.55 To door 2
MVZ1 – deck 6 – corridor 4 0.9 20 18 To door 1
MVZ1 – deck 6 – door 1 0.9 N.A. N.A. To stair A
MVZ1 – deck 6 – door 2 0.9 N.A. N.A. To stair A
MVZ1 – deck 6 – stair A 1.35 4.67 N.A. Up to deck 7
MVZ1 – deck 6 – corridor 5 0.9 13 11.7 To door 3
MVZ1 – deck 6 – corridor 6 0.9 20 18 To door 4
MVZ1 – deck 6 – door 3 0.9 N.A. N.A. To stair B
MVZ1– deck 6 – door 4 0.9 N.A. N.A. To stair B
MVZ1 – deck 6 – stair B 1.35 4.67 N.A. Up to deck 7

  • .3 Deck 7 is connected with deck 8 through stair C (stairs A and B coming from below stop at deck 7). Arrival of stairs A and B and deck 7 cabins are connected to stair C through 8 corridors, doors are neglected here in view of simplifying this example. The clear widths and lengths are:

Item Wc (clear width)[m] Length [m] Area [m2] Notes
MVZ1 – deck 7 – corridor 1 0.9 6 5.4 To stair C
MVZ1 – deck 7 – corridor 2 0.9 9 8.1 To corridor 7
MVZ1 – deck 7 – corridor 3 0.9 15 13.5 To corridor 8
MVZ1 – deck 7 – corridor 4 0.9 6 5.4 To stairway C
MVZ1 – deck 7 – corridor 5 0.9 14 12.6 To corridor 7
MVZ1 – deck 7 – corridor 6 0.9 15 13.5 To corridor 8
MVZ1 – deck 7 – corridor 7 2.4 11 26.4 From stair B
MVZ1 – deck 7 – corridor 8 2.4 9 21.6 From stair A to stair C
MVZ1 – deck 7 – stair C 1.40 4.67 N.A. Up to deck 8

  • .4 Deck 11 is connected with deck 10 through a double stair (stair C) in the aft part of the zone. Two corridors (corridor 1 and 2) connect the cabins with stair C through two doors (respectively doors 1 and 2). The clear widths and lengths are:

Item Wc (clear width)[m] Length [m] Area [m2] Notes
MVZ1 – deck 11 – corridor 1 0.9 36 32.4 To door 1
MVZ1 – deck 11 – corridor 2 0.9 36 32.4 To door 2
MVZ1 – deck 11 – door 1 0.9 N.A. N.A. To stair C
MVZ1 – deck 11 – door 2 0.9 N.A. N.A. To stair C
MVZ1 – deck 11 – stair C 2.8 4.67 N.A. down to deck 10

  • .5 Deck 10 has a similar arrangement as deck 11. The clear widths and lengths are:

Item Wc (clear width)[m] Length [m] Area [m2] Notes
MVZ1 – deck 10 – corridor 1 0.9 36 32.4 To door 1
MVZ1 – deck 10 – corridor 2 0.9 36 32.4 To door 2
MVZ1 – deck 10 – door 1 0.9 N.A. N.A. To stair C
MVZ1 – deck 10 – door 2 0.9 N.A. N.A. To stair C
MVZ1 – deck 10 – stair C 2.8 4.67 N.A. down to deck 9

  • .6 Deck 9 has a similar arrangement as deck 11. The clear widths and lengths are:

Item Wc (clear width)[m] Length [m] Area [m2] Notes
MVZ1 – deck 9 – corridor 1 0.9 36 32.4 To door 1
MVZ1 – deck 9 – corridor 2 0.9 36 32.4 To door 2
MVZ1 – deck 9 – door 1 0.9 N.A. N.A. To stair C
MVZ1 – deck 9 – door 2 0.9 N.A. N.A. To stair C
MVZ1 – deck 9 – stair C 2.8 4.67 N.A. down to deck 8

  • .7 Deck 8, people coming from decks 5, 6 and 7 (stair C) and from decks 11, 10 and 9 (stair C) enters the assembly station through paths 1 and 2. The clear widths and lengths are:

Item Wc (clear width)[m] Length [m] Notes
MVZ1 – deck 8 – path 1 2.00 9.50 to assembly station
MVZ1 – deck 8 – path 2 2.50 7.50 to assembly station

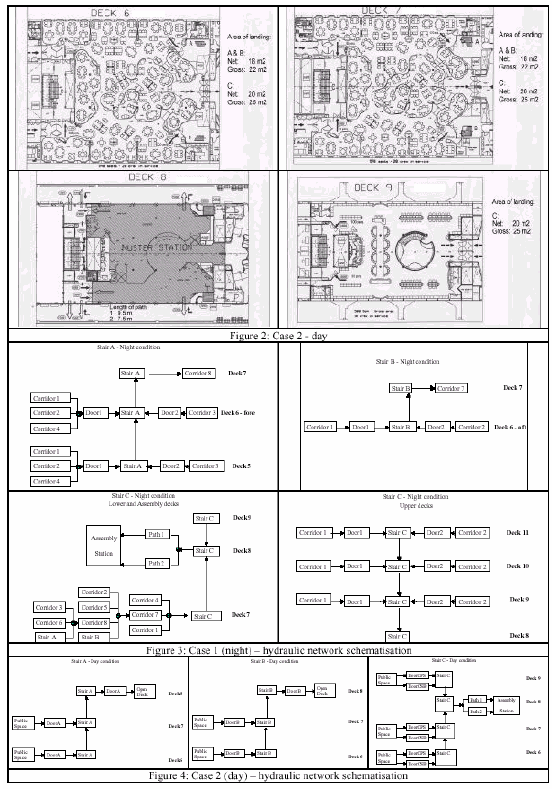

  3.2.2 In MVZ 2, the escape routes are as follows (see figure 4):

  • .1 Deck 6 is connected with deck 7 (and then deck 8 where assembly stations are located) through two stairs (stair A and B respectively) in the fore part of the zone and through a double stair (stair C) in the aft part of the zone. Two doors (respectively door A and B) connect the public space with stairs A and B; and two doors (respectively door port side (PS) and door starboard side (SB)) connect the public space with stair C. The clear widths and lengths are:

Item Wc (clear width)[m] Length [m] Notes
MVZ2 – deck 6 – door A 1 N.A.
MVZ2 – deck 6 – door B 1 N.A.
MVZ2 – deck 6 – door C PS 1.35 N.A.
MVZ2 – deck 6 – door C SB 1.35 N.A.
MVZ2 – deck 6 – stair A 1.4 4.67 up to deck 7
MVZ2 – deck 6 – stair B 1.4 4.67 up to deck 7
MVZ2 – deck 6 – stair C 3.2 4.67 up to deck 7

  • .2 deck 7 is connected with deck 8 through the same arrangements as deck 6 to deck 7. The clear widths and lengths are:

Item Wc (clear width)[m] Length [m] Notes
MVZ2 – deck 7 – door A 1.7 N.A.
MVZ2 – deck 7 – door B 1.7 N.A.
MVZ2 – deck 7 – door C PS 0.9 N.A.
MVZ2 – deck 7 – door C SB 0.9 N.A.
MVZ2 – deck 7 – stair A 2.05 4.67 up to deck 8
MVZ2 – deck 7 – stair B 2.05 4.67 up to deck 8
MVZ2 – deck 7 – stair C 3.2 4.67 up to deck 8

  • .3 Deck 9 is connected with deck 8 through a double stair (stair C) in the aft part of the zone. Two doors (respectively door PS and door SB) connect the public space with stair C. The clear widths and lengths are:

Item Wc (clear width)[m] Length [m] Notes
MVZ2 – deck 9 – door C PS 1 N.A.
MVZ2 – deck 9 – door C SB 1 N.A.
MVZ2 – deck 9 – stair C 3.2 4.67 down to deck 7

  • .4 Deck 8, people coming from decks 6 and 7 (stairs A and B) enter directly the embarkation station (open deck) through doors A and B, while people coming from deck 9 (stair C) enter the assembly (muster) station through paths 1 and 2. The clear widths and lengths are:

Item Wc (clear width)[m] Length [m] Notes
MVZ2 – deck 8 – door A 2.05 N.A. to embarkation station
MVZ2 – deck 8 – door B 2.05 N.A. to embarkation station
MVZ2 – deck 8 – path 1 2 9.5 to assembly station
MVZ2 – deck 8 – path 2 2.5 7.5 to assembly station

Case 1 - night

Note “Muster Station” has the same meaning as “Assembly Station”.

Note “Muster Station” has the same meaning as “Assembly Station”.
