9 Regulation 23.9

  9.1 Compartment boundaries Yp, Ys, and z shall be developed as shown in the figures below:

Yp = the transverse distance from the port-most point on the compartment located at or below the waterline dB, to a vertical plane located BB/2 to starboard of the ship's centreline;
Ys = the transverse distance from the starboard-most point on the compartment located at or below the waterline dB, to a vertical plane located BB/2 to starboard of the ship's centreline; and
z = the minimum value of z over the length of the compartment, where, at any given longitudinal location, z is the vertical distance from the lower point of the bottom shell at that longitudinal location to the lower point of the compartment at that longitudinal location.

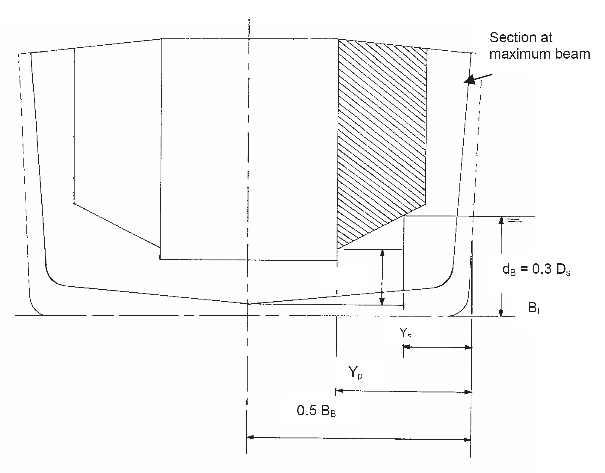

Ys, Yp and z for starboard cargo tank (Section looking forward)

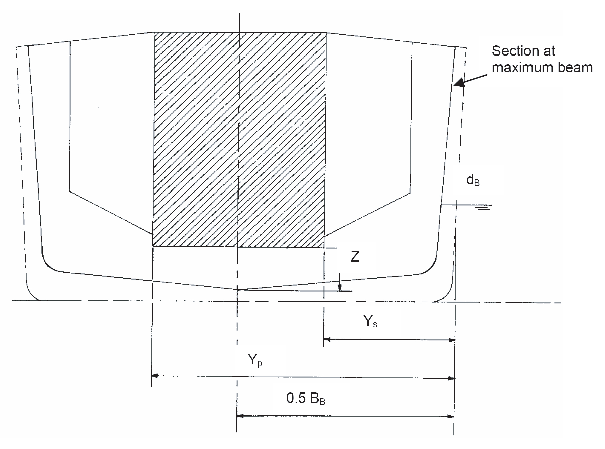

Ys, Yp and z for centre cargo tank (Section looking forward)

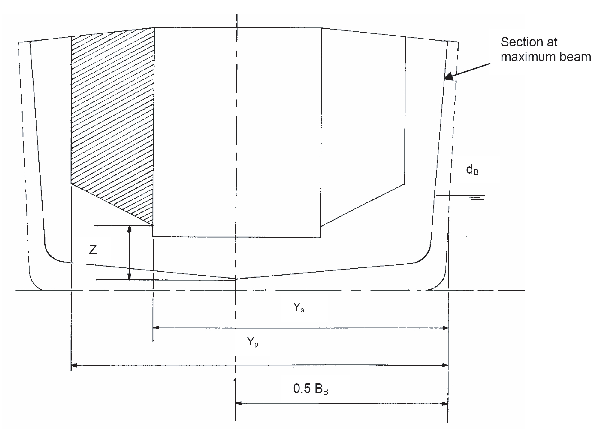

Ys, Yp and z for port cargo tank (Section looking forward)
[Yp should be corrected to the intersection of dB and the port most cargo tank boundary]
