Interpretation Longitudinal extent of damage to superstructure (Paragraphs 2.7.8 and 2.8.1)

 The longitudinal extent of damage to superstructure in the instance of side damage to a machinery space aft under paragraph 2.8.1 should be the same as the longitudinal extent of the side damage to the machinery space (see figure 1).

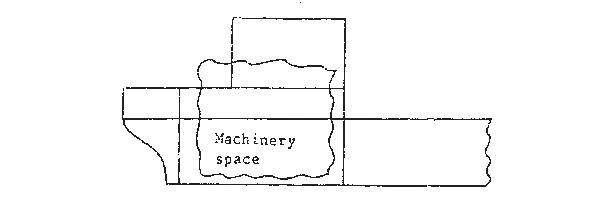

Figure 1 Longitudinal extent of damage of superstructure
