8 Stowage free at three sides

 When unit loads are stowed against the ship's sides in such a way that shifting is possible from three sides, gratings or plywood sheets should be positioned vertically against the stack faces of the unit loads. Special attention should be paid to the corners of the stow to prevent damage to the unit loads by the wire lashings. Wire lashing at different heights should tighten the stow together with the gratings or plywood sheets at the sides (figure 2).

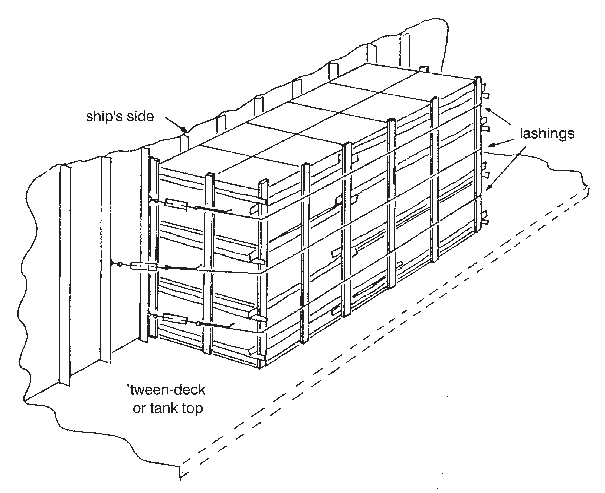

Figure 2 Securing of units stowed at the ship's side

Parent topic: Annex 12 - Safe Stowage and Securing of Unit Loads
