Interpretation Stepped machinery space forward bulkhead (Paragraphs 2.8.1.3 and 2.8.1.5)
Clasification Society 2024 - Version 9.40
Statutory Documents - IMO Publications and Documents - Circulars - Maritime Safety Committee - MSC/Circular.406/Rev.1 – Guidelines on Interpretation of the IBC Code and the IGC Code and Guidelines for the Uniform Application of the Survival Requirements of the IBC and IGC Codes – (Adopted on 29 June 1990) - Annex - Guidelines on Interpretation of the IBC Code and the IGC Code and Guidelines for the Uniform Application of the Survival Requirements of the IBC and IGC Codes - Interpretation of Provisions in the IBC Code - InterpretationStepped machinery space forward bulkhead (Paragraphs 2.8.1.3 and 2.8.1.5)

Interpretation Stepped machinery space forward bulkhead (Paragraphs 2.8.1.3 and 2.8.1.5)

 The concept of a stepped machinery space forward bulkhead is already implied in paragraph 3.2.1 of the Code, and in regulation II-2/56 of the 1974 SOLAS Convention, as amended. For damage stability considerations when such a bulkhead contains a step more than 3 m in length, damage should be treated as shown in figure 2.

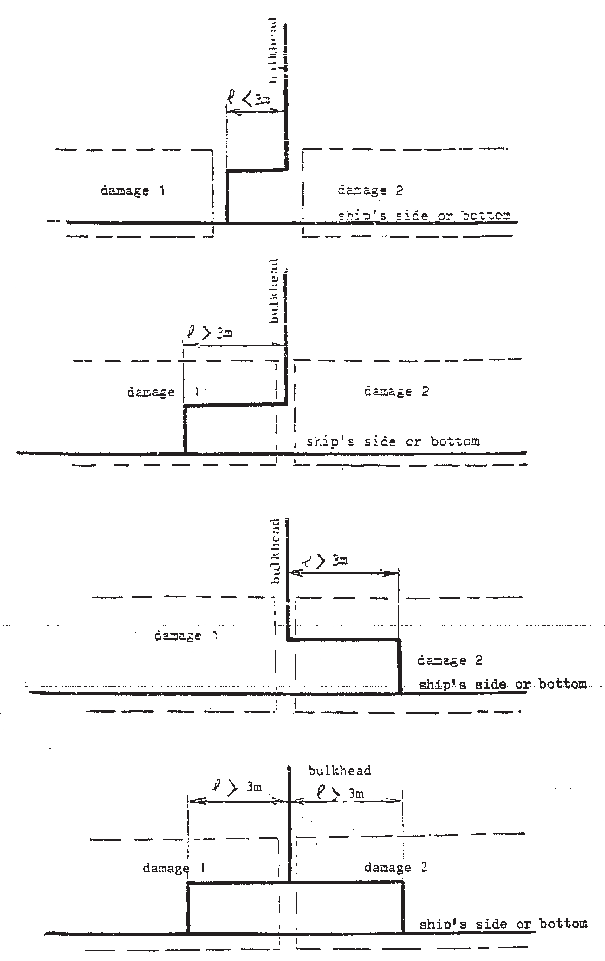

Figure 2 Damage to stepped machinery space forward bulkhead

Parent topic: Interpretation of Provisions in the IBC Code
