11 Securing calculation

  11.1 Where necessary, the securing arrangements for heavy cargo items should be verified by an appropriate calculation in accordance with annex 13 to the Code.

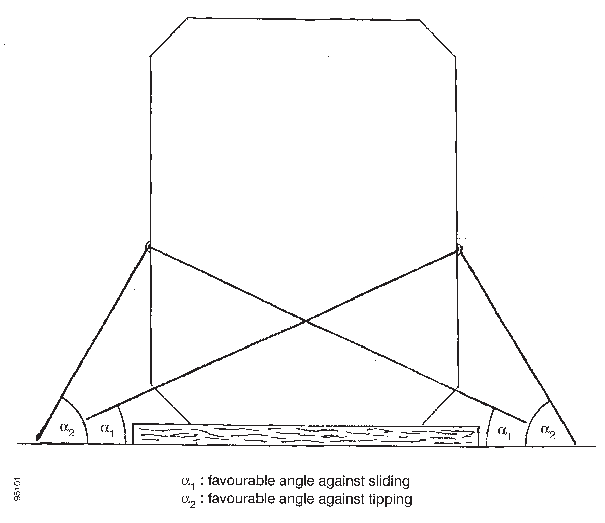

Figure 1 Principles of securing heavy items against sliding and tipping

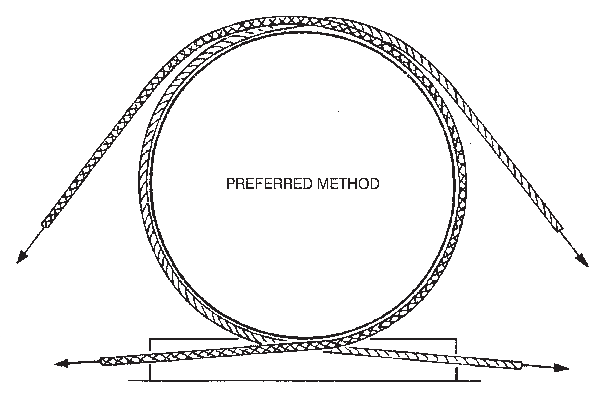

Figure 2 Principle of securing heavy items having no suitable securing points
