II Recesses

  1 Recesses may be treated as actual or fictitious compartments using the example in Figure A-6.

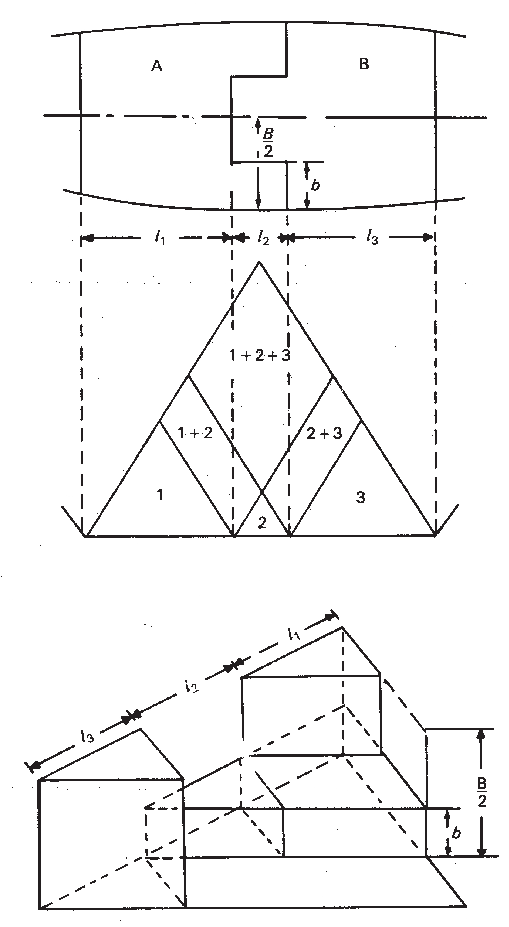

Figure A-6 Recesses as actual or fictitious compartments

  2 The following nomenclature is used in this section:

l 1, l 2, l 3 length of damage zones as shown in Figure A-6;
p 1, p 2, p 3 are p calculated according to regulation 25-5.1, using l 1, l 2, l 3 as l;
p 12, p 23 are p calculated according to regulation 25-5.1, using l 1 + l 2 and l 2 + l 3 as l;
p 123 is p calculated according to regulation 25-5.1, using l 1 + l 2 + l 3 as l;
r 1 is r calculated according to regulation 25-5.2, using l 1 as l and b as shown in Figure A-6;
r 2 is r calculated according to regulation 25-5.2, using l 2 as l and b as shown in Figure A-6;
r 12, r 23 are r calculated according to regulation 25-5.2, using l 1 + l 2 as l and b as shown in Figure A-6;
r 123 is r calculated according to regulation 25-5.2, using l 1 + l 2 + l 3 as l and b as shown in Figure A-6;

  3 Application to actual compartments:

Spaces to be considered p-factor to be used for calculating contribution
flooded for s-calculation to attained subdivision index
A p = p 12 x r 12
B p = p 3
A and B p = p 123 - p 12 x r 12 - p 3

 alternatively:

A p = p 1
B p = p 3
A and B p = p 123 - p 1 - p 3

  4 Application to fictitious compartments:

A p = p 12 x r 12 + p 1(1-r 1)
B p = p 3
A and B p = p 123 - p 12 x r 12 - p 1(1-r 1) - p 3
Parent topic: Appendix 2
